An easy example on how to use Jetpack ViewModel and LiveData

· 4 min read
An easy example on how to use Jetpack ViewModel and LiveData

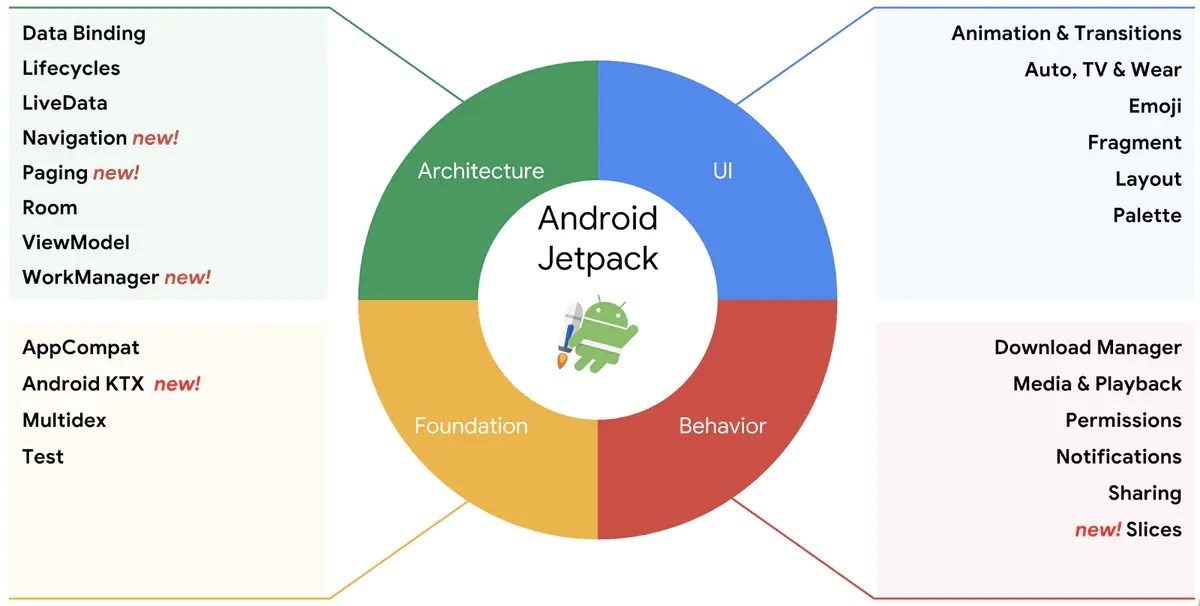

Jetpack broken up into four main areas: Architecture, Foundation, Behavior and UI.

ViewModel

ViewModel helped to achieve two things:

  • help the project to adopt MVVM architecture
  • hold the data in the memory in a life-cycle manner

One of the benefits of using ViewModel is the data can be kept while screen is rotated.

LiveData

LiveData can apply observer pattern to a variable, thus you can bind the data changes to the UI component.

One example of using both ViewModel and LiveData

We are going to create a simple example which only has three parts on the UI:

Screenshot_20200722_111122_au.com.flyingbits.jetpacktestkotlin

Simply as it is, +1 button will add the total value by 1, -1 button will minus the total by -1.

Step 1: install ViewModel and LiveData plugins.

On the Google Android's document website, you can install ViewModel along with lifecycle or you can just install the target plugin.

def lifecycle_version = "2.2.0"

// ViewModel
implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:$lifecycle_version"
implementation 'androidx.lifecycle:lifecycle-extensions:$lifecycle_version'

// ViewModel
implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:$lifecycle_version"
// LiveData
implementation "androidx.lifecycle:lifecycle-livedata-ktx:$lifecycle_version"
// Lifecycles only (without ViewModel or LiveData)
implementation "androidx.lifecycle:lifecycle-runtime-ktx:$lifecycle_version"

// Saved state module for ViewModel
implementation "androidx.lifecycle:lifecycle-viewmodel-savedstate:$lifecycle_version"

// Annotation processor
kapt "androidx.lifecycle:lifecycle-compiler:$lifecycle_version"
// alternately - if using Java8, use the following instead of lifecycle-compiler
implementation "androidx.lifecycle:lifecycle-common-java8:$lifecycle_version"

// optional - helpers for implementing LifecycleOwner in a Service
implementation "androidx.lifecycle:lifecycle-service:$lifecycle_version"

// optional - ProcessLifecycleOwner provides a lifecycle for the whole application process
implementation "androidx.lifecycle:lifecycle-process:$lifecycle_version"

// optional - ReactiveStreams support for LiveData
implementation "androidx.lifecycle:lifecycle-reactivestreams-ktx:$lifecycle_version"

// optional - Test helpers for LiveData
testImplementation "androidx.arch.core:core-testing:$arch_version"

I would recommend to install the following two plugins if you are only use ViewModel and LiveData:

// ViewModel
implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:$lifecycle_version"
implementation "androidx.lifecycle:lifecycle-livedata-ktx:$lifecycle_version"

Step 2: MyViewModel.kt

Create the ViewModel inherited from ViewModel class with only one observable variable inside: num, which is used to hold the total shown in the screenshot.

package com.flyingbits.kotlinlearn

import androidx.lifecycle.MutableLiveData
import androidx.lifecycle.ViewModel

class MyViewModel: ViewModel()  {

    private var num: MutableLiveData<Int> = MutableLiveData(0)

    public fun getNum(): MutableLiveData<Int> {
        return this.num
    }

    public fun addNum(n: Int) {
        this.num.value = this.num.value!! + n
    }
}

Step 3: MainActivity.kt

Here is the complete code for MainActivity:

package com.flyingbits.kotlinlearn

import android.os.Bundle
import android.util.Log
import android.view.View
import android.widget.Button
import android.widget.TextView
import androidx.appcompat.app.AppCompatActivity
import androidx.fragment.app.FragmentManager
import androidx.fragment.app.FragmentTransaction
import androidx.lifecycle.Observer
import androidx.lifecycle.ViewModelProvider
import androidx.lifecycle.ViewModelProviders


class MainActivity : AppCompatActivity() {

    private var myViewModel: MyViewModel? = null
    private val TAG: String = "Running Order"
    private var btn1: Button? = null
    private var btn2: Button? = null
    private var textView: TextView? = null

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        Log.d(TAG, "onCreate in called")

        myViewModel = ViewModelProvider(this)[MyViewModel::class.java]
        btn1 = findViewById(R.id.button1)
        btn2 = findViewById(R.id.button2)
        textView = findViewById(R.id.textView)

        myViewModel!!.getNum().observe(this, Observer<Int>() {
            textView?.setText(myViewModel!!.getNum().value.toString())
        })

        btn1?.setOnClickListener {
            myViewModel!!.addNum(1)
        }

        btn2?.setOnClickListener {
            myViewModel!!.addNum(-1)
        }

    }
}

Step 4: Layout of the MainActivity

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello World!"
        android:id="@+id/text_view"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Button
        android:id="@+id/button_add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="+1"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.216"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_bias="0.762" />

    <Button
        android:id="@+id/button_minus"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="-1"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.832"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_bias="0.762" />

</androidx.constraintlayout.widget.ConstraintLayout>

By far you have successfully implemented the viewModel and liveData in your project.

  • If you are running the app now, you can see +1 button will increase the total value, -1 button will reduce value.
  • If the screen is rotated, the total value will kept on the screen.

The complete project you can download from: https://github.com/arkilis/jetpack-mvvm
